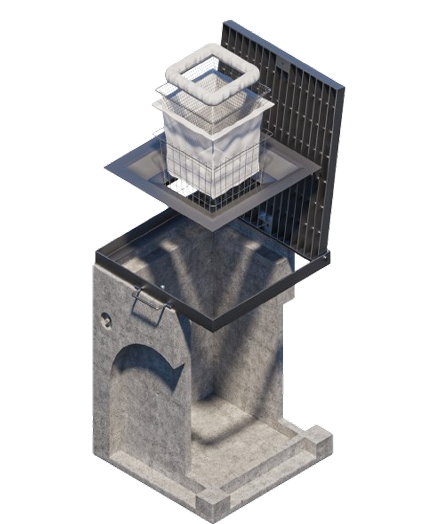

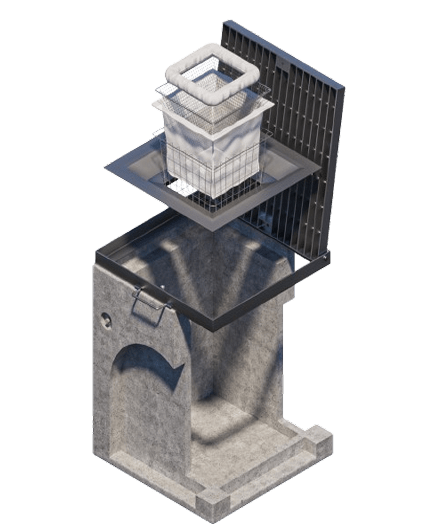

The Protector Trap-It is a simple gross Pollutant Trap Pit Insert that comes with a simple yet highly efficient design. Designed for ease of installation and maintenance, it is the best and easiest choice for your Gross pollutant trap needs. This system combines a 3-stage physical filtration system, whilst being designedfor structural integrity, high volume capture and high load capacities.

View full details

For designers & specifiers

How to specify
Trap-It.

Start with the project requirements.
We’ll help you confirm the right configuration.

  1. Pit dimensions

    Measure the clear opening, internal pit dimensions, depth and grate arrangement.

  2. Catchment flow

    State the contributing catchment and design flow to each pit.

  3. Insert selection

    Confirm the Trap-It model, screen and filter bag configuration.

  4. Mounting detail

    Coordinate the support frame and adjustable mounting arms with the pit.

  5. Bypass path

    Maintain the designed high-flow bypass and required drainage clearances.

  6. Service access

    Allow safe removal, lifting and cleaning and nominate the maintenance plan.

Suggested specification wording

Complete the bracketed project details and confirm the selected model with Protector.

Supply Protector Trap-It removable gross pollutant trap pit inserts, model [MODEL], to pits [PIT REFERENCES]. Confirm fit to the measured clear pit openings of [DIMENSIONS] mm and the required design flow of [FLOW] L/s per pit. Include stainless steel frames, adjustable mounts and the selected screen and filter bag configuration. Maintain the designed bypass path and provide safe access for removal and cleaning.

Final dimensions, capacities and installation details are established in the approved project drawings and current manufacturer documentation.

Request a project-specific specification
