Filtration & nutrients

EnviroProtector

Treat the pollutants you cannot see.

An up-flow stormwater filter combining sedimentation and media filtration for polluted runoff.

Product selection · Project drawings · Technical support

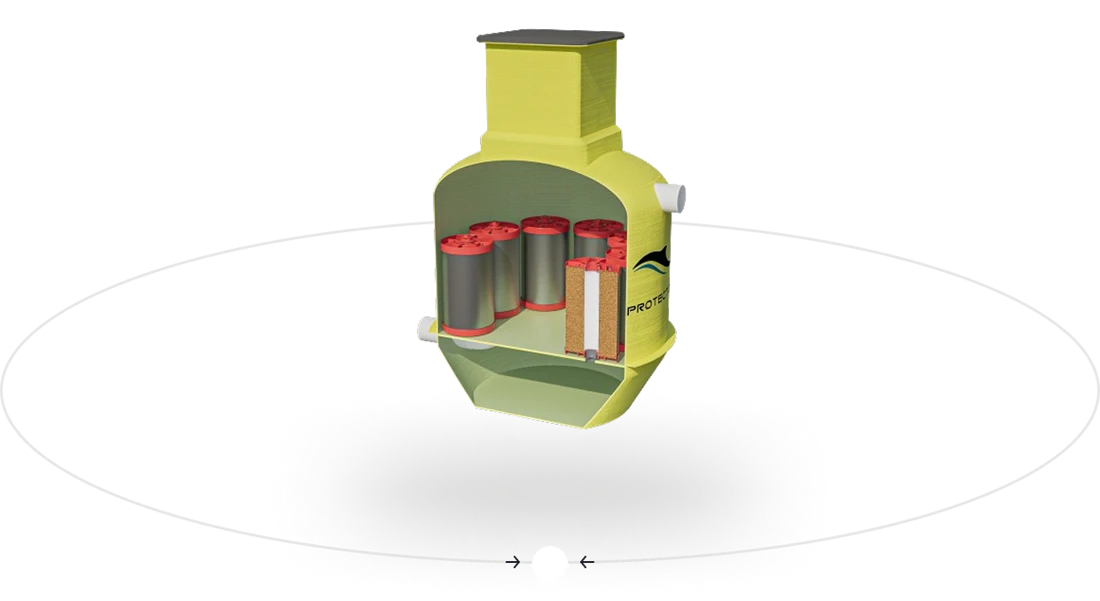

EnviroProtector product illustration — Engineered for your application.01 / PRODUCT

The system, explained

Treat the pollutants you cannot see.

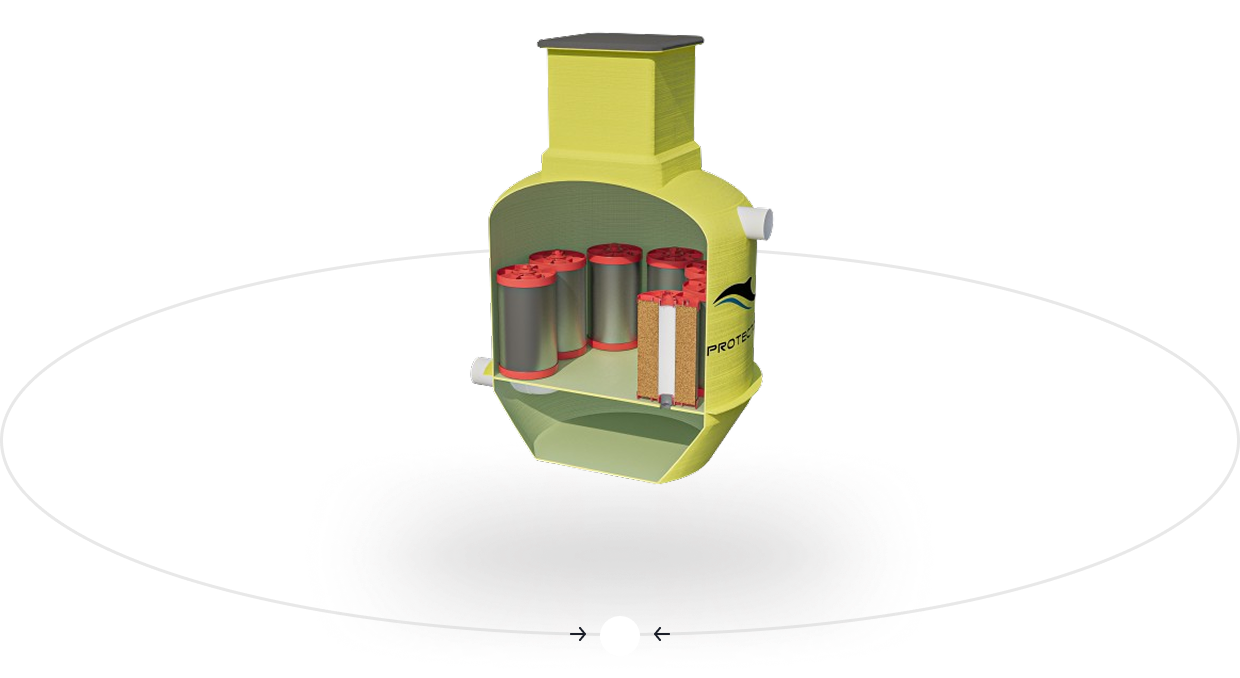

EnviroProtector brings hydrodynamic separation and up-flow filtration into an accessible housing. The sediment chamber and replaceable filter element support treatment of fine material and dissolved pollutants with media selected for the application.

Explore our engineering support

How it works

Purpose in every detail.

Separate sediment

The inlet creates a radial flow pattern and directs sediment into the collection chamber.

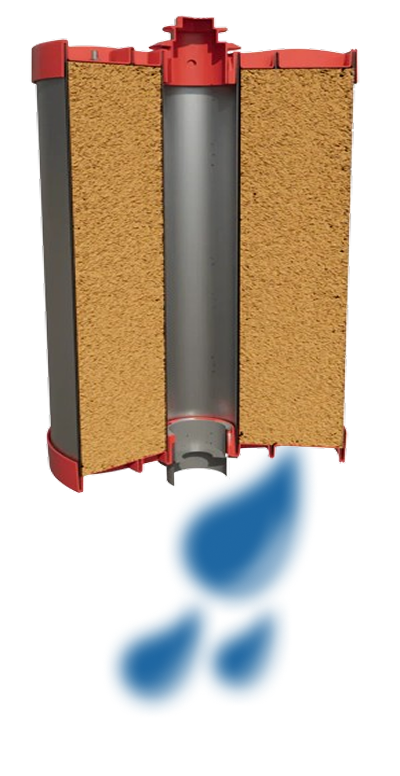

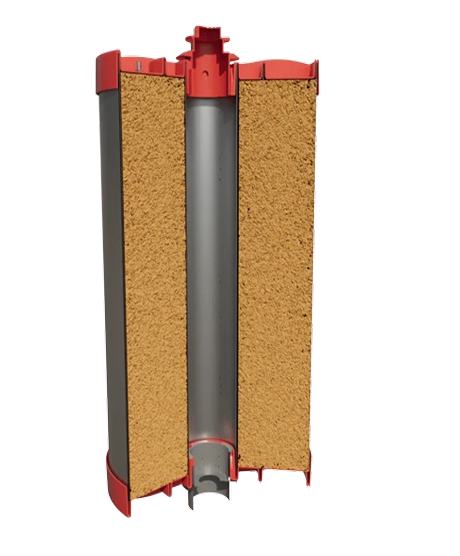

Filter upwards

Water passes through the media, combining physical filtration with adsorption and precipitation processes.

Access the filter

The filter element can be accessed and removed through the manway for servicing.

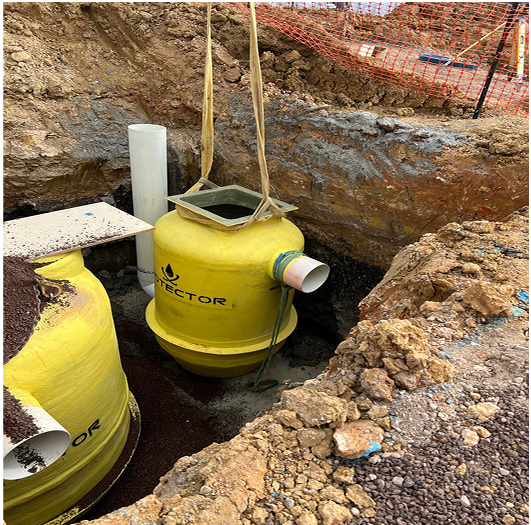

Where it fits

Designed for real sites.

Traffic areas Car parks Commercial sites New and existing chambers

For designers & specifiers

How to specify
EnviroProtector.

Start with the project requirements.
We’ll help you confirm the right configuration.

Pollutant loading
Identify target pollutants and catchment use.
Treatment flow
Provide the required treatment flow and approved performance criteria.
Filter configuration
Confirm model, media selection and replaceable filter arrangement.
Hydraulic levels
State inlet, outlet and bypass levels and available head.
Chamber and access
Coordinate housing, sediment storage and filter removal clearances.
Maintenance package
Request drawings and the sediment removal and filter replacement schedule.

Suggested specification wording

Complete the bracketed project details and confirm the selected model with Protector.

Supply a Protector EnviroProtector up-flow stormwater filter, model [MODEL], for a treatment flow of [FLOW] L/s. Include hydrodynamic sediment separation, the selected filter media and accessible sediment storage. Confirm the media and performance documentation against the approved treatment objectives. Coordinate inlet, outlet, bypass and filter removal access with the project drawings and manufacturer instructions.

Final dimensions, capacities and installation details are established in the approved project drawings and current manufacturer documentation.
