Separate and settle
Incoming water enters the primary chamber, allowing sediment to settle and free oil to separate.
Oil & water separation
HydroProtector
Full retention. Serious protection.
Capture oil and hydrocarbon spills before they reach the environment, with a gravity-operated, full-retention separator.
Product selection · Project drawings · Technical support

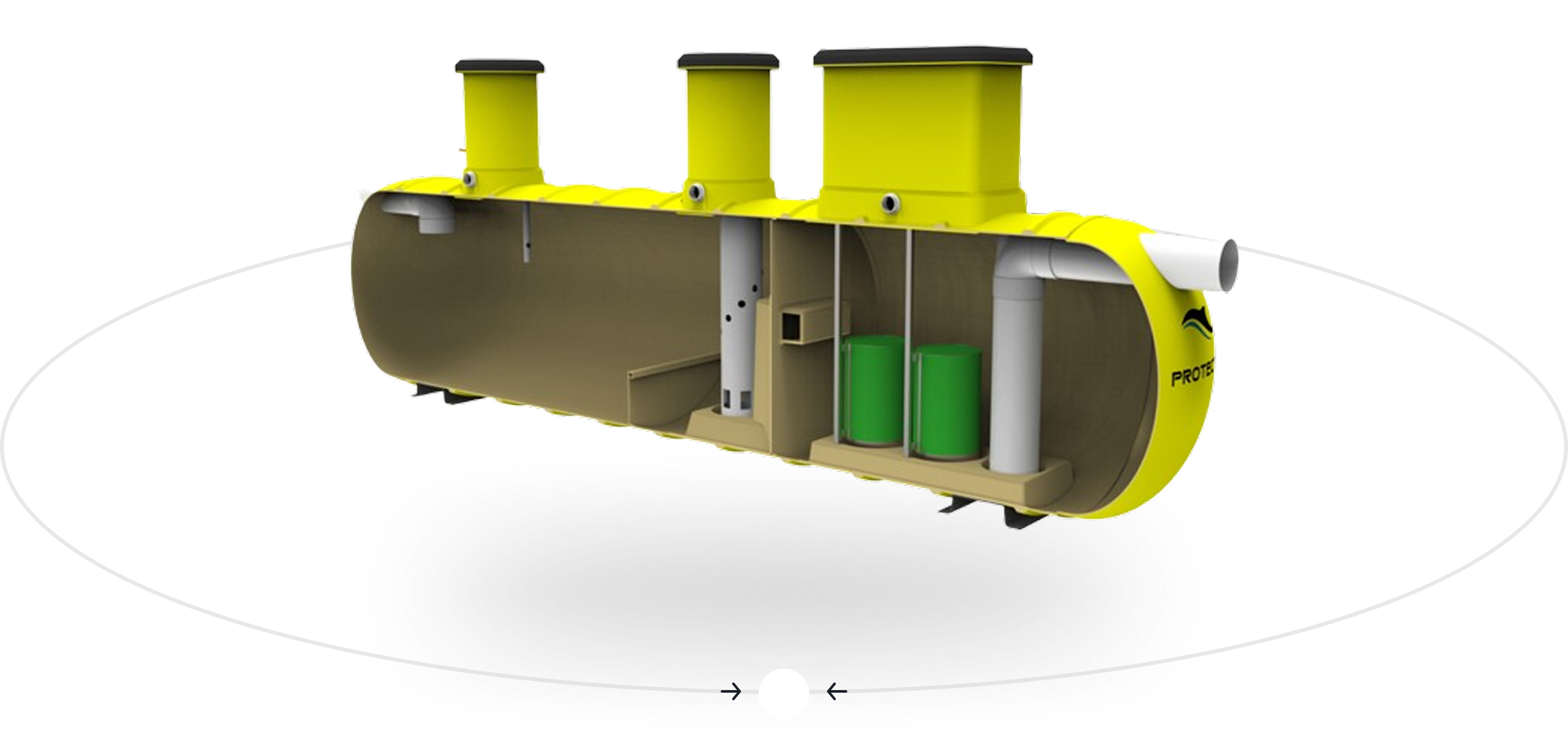

The system, explained
Full retention. Serious protection.

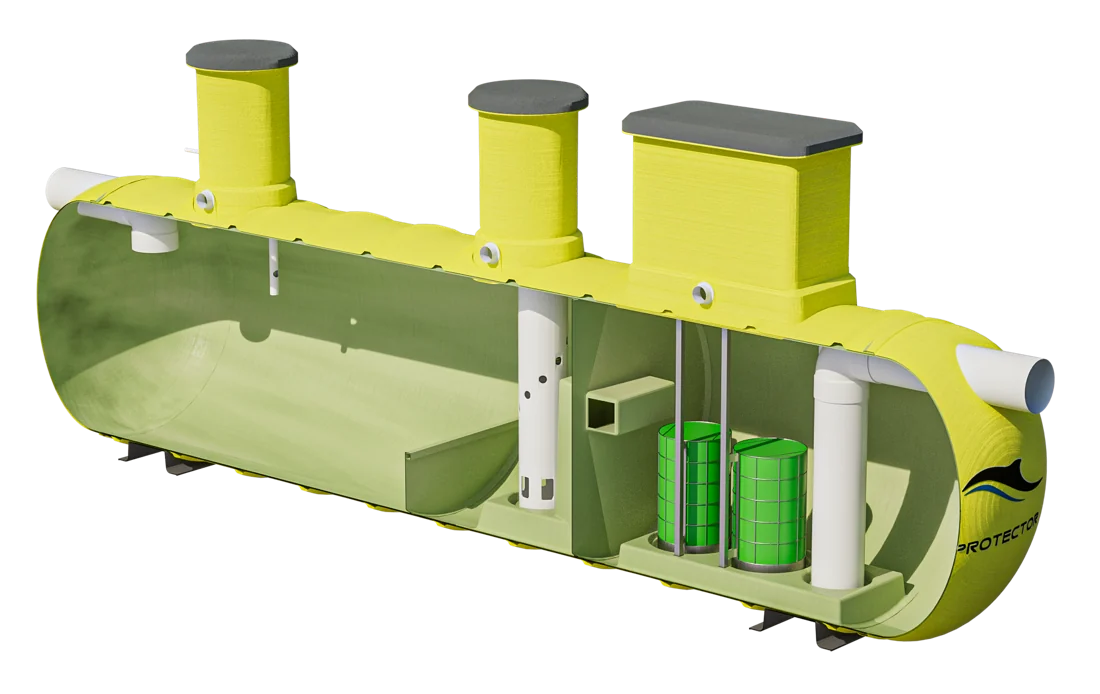

HydroProtector treats incoming flows without an internal bypass. Its FRP body houses a flame trap inlet, automatic closure device and coalescer arrangement, designed for applications where spill containment and oil-water separation matter.
Explore our engineering supportHow it works
Purpose in every detail.
Coalesce and retain
The coalescer assists the separation of smaller oil droplets. Separated hydrocarbons are retained in the unit.
Protect the outlet
The automatic closure device provides spill protection. Inspection, alarms and maintenance form part of the operating plan.

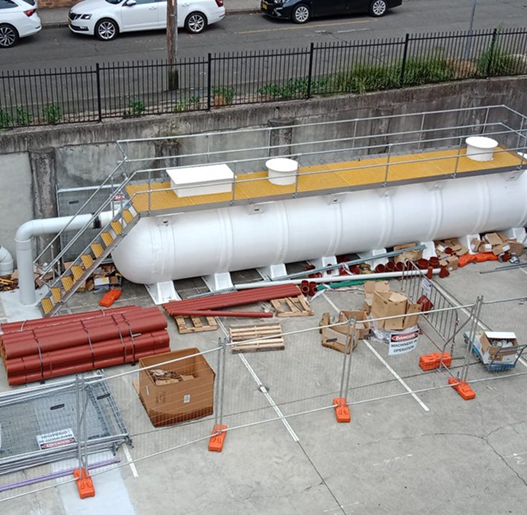

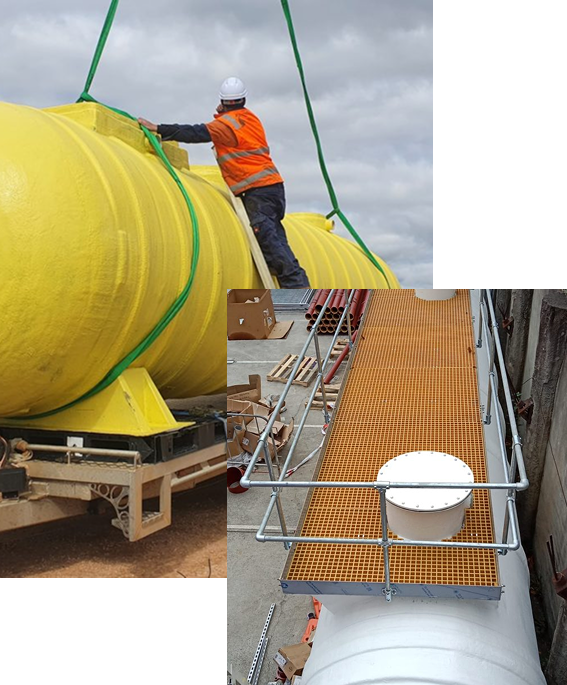

Where it fits
Designed for real sites.
Fuel stations Transformer substations Industrial facilities Fuel distribution sites
For designers & specifiers
How to specify
HydroProtector.
Start with the project requirements.
We’ll help you confirm the right configuration.
Design flow
Confirm the design treatment flow in L/s and the contributing catchment.
Spill containment
State the required oil spill capacity, in litres, based on the site risk assessment.
Separator arrangement
Nominate full retention, the coalescer, flame trap and automatic closure device.
Connections and levels
Provide pipe diameters, inlet and outlet invert levels and finished surface level.
Site and access
Confirm groundwater, cover loading, excavation, lifting and pump-out access.
Documents and alarms
Request the model-specific drawings, certification, installation and maintenance manuals; define alarm requirements.
Suggested specification wording
Complete the bracketed project details and confirm the selected model with Protector.
Supply a Protector HydroProtector full-retention oil-water separator, model [MODEL], designed for a treatment flow of [FLOW] L/s and an oil spill capacity of [CAPACITY] L. Provide FRP construction, flame trap inlet, automatic closure device and coalescer arrangement. Confirm the model-specific EN 858 performance documentation. Connections, cover loading, alarm provision and installation shall be as shown on the approved project drawings and current manufacturer instructions.
Final dimensions, capacities and installation details are established in the approved project drawings and current manufacturer documentation.
Request a project-specific specification
Technical data
Product Specification
Model selection reference. Confirm current dimensions, capacities and connection details against the approved project drawing.
| Model ID | Treatment flow (L/s) | Spill Capacity(L) | Total capacity (L) | Unit length (mm) | Unit depth (mm) | Standard pipework diameter (mm) |
|---|---|---|---|---|---|---|
| HYD.2.DC.R2-1 | 2 | 343 | 791 | 1099 | 1050 | 100 |
| HYD.4.DC.R2-1 | 4 | 617 | 1551 | 2100 | 1050 | 150 |
| HYD.8.DC.R2-1 | 8 | 1344 | 2984 | 3000 | 1200 | 150 |
| HYD.13.DC.R4-1 | 13 | 2436 | 4896 | 2370 | 1500 | 225 |
| HYD.15.DC.R4-1 | 15 | 2790 | 5616 | 3750 | 1500 | 225 |
| HYD.20.DC.R4-1 | 20 | 4033 | 7495 | 3350 | 1850 | 300 |
| HYD.30.DC.R5-1 | 30 | 6006 | 11,228 | 5450 | 1850 | 300 |
| HYD.40.DC.R6-1 | 40 | 10,008 | 14,950 | 7460 | 1850 | 300 |
| HYD.50.DC.R5-2 | 50 | 10,031 | 18,678 | 8000 | 1850 | 300 |
| HYD.60.DC.R5-2 | 60 | 11,923 | 22,405 | 9550 | 1850 | 300 |
| HYD.70.DC.R5-2 | 70 | 14,951 | 26,224 | 7900 | 2200 | 300 |
| HYD.80.DC.R6-2 | 80 | 17,022 | 29,888 | 8850 | 2200 | 300 |
| HYD.100.DC.R5-3 | 100 | 21,262 | 37,392 | 11,000 | 2200 | 300 |
| HYD.110.DC.R5-3 | 110 | 23,848 | 41,469 | 9950 | 2500 | 450 |
| HYD.120.DC.R6-3 | 120 | 25,939 | 45,131 | 10,800 | 2500 | 450 |
| HYD.150.DC.R5-4 | 150 | 32,209 | 56,116 | 13,350 | 2500 | 450 |
| HYD.180.DC.R6-4 | 180 | 40,983 | 67,949 | 11,000 | 3000 | 450 |
| HYD.200.DC.R6-4 | 200 | 47,297 | 76,029 | 9000 | 3500 | 450 |
| HYD.250.DC.R7-4 | 250 | 58,239 | 93,825 | 11,000 | 3500 | 300 |
| HYD.300.DC.R7-5 | 300 | 69,728 | 112,511 | 13,100 | 3500 | 750 |
| HYD.350.DC.R7-5 | 350 | 80,943 | 130,751 | 15,150 | 3500 | 750 |
