Home/Products/HydroVault

Storage & detention

HydroVault

Capacity built around your project.

FRP storage for stormwater, detention, retention and wastewater applications, configured to suit the site.

How to specify Discuss your project

Product selection · Project drawings · Technical support

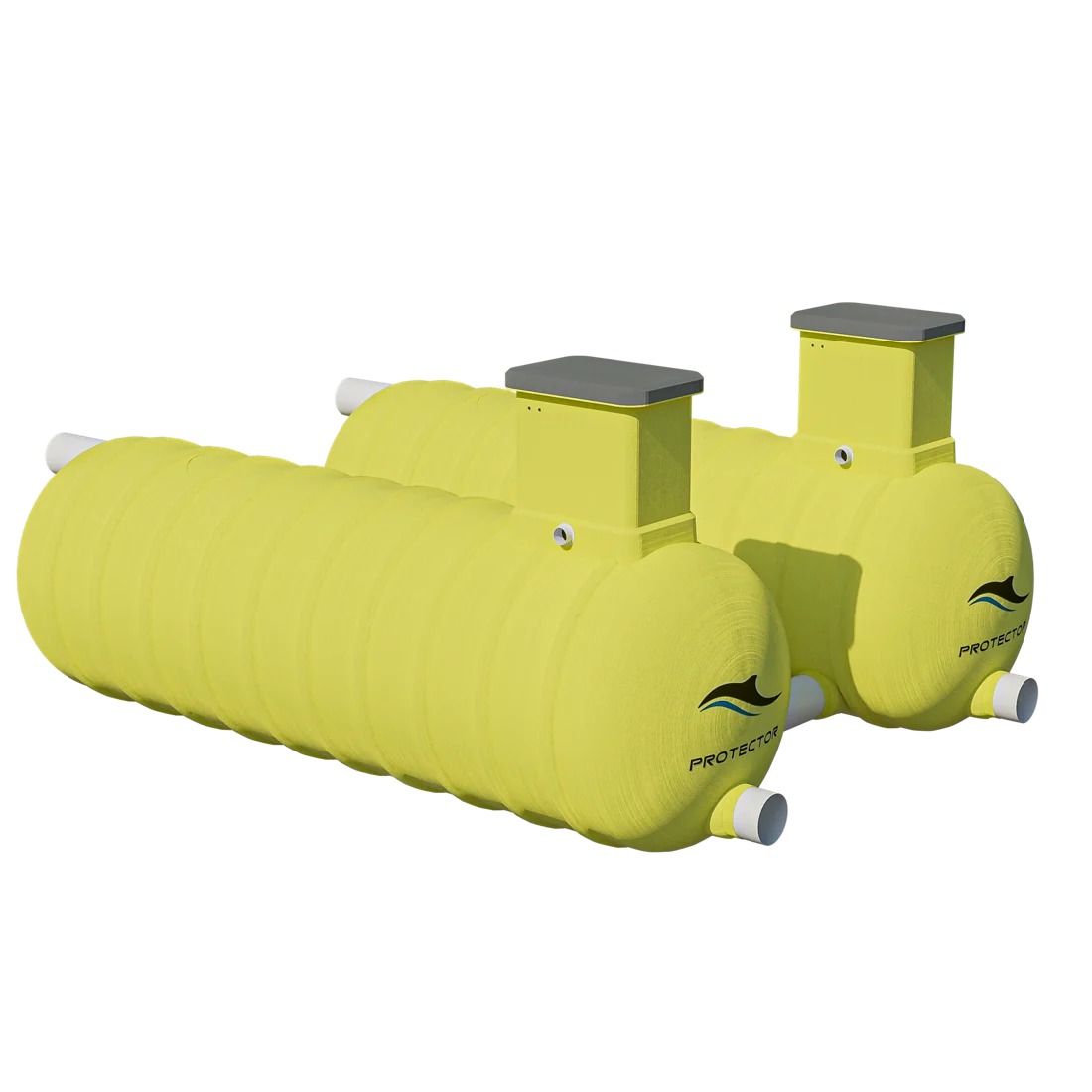

PROTECTOR / HYDROVAULTHydroVault product illustration
Engineered for your application.01 / PRODUCT

The system, explained

Capacity built around your project.

HydroVault uses horizontal FRP tank construction for storage applications. Tank capacity, connections, internal arrangements and material compatibility are selected for the fluid, operating duty and installation conditions.

Explore our engineering support

How it works

Purpose in every detail.

01

Define the duty

Start with the fluid, required usable volume and operating levels.

02

Configure the tank

Coordinate the FRP tank, connections, access and any specified internal baffles or pump interfaces.

03

Install and operate

Integrate the tank with the approved foundation, anchoring, pipework and maintenance plan.

Where it fits

Designed for real sites.

Stormwater detention Rainwater storage Wastewater storage Emergency storage

For designers & specifiers

How to specify
HydroVault.

Start with the project requirements.
We’ll help you confirm the right configuration.

  1. Usable volume

    State the required usable storage volume and operating water levels.

  2. Fluid and duty

    Identify the fluid, temperature and any chemical compatibility requirements.

  3. Geometry and layout

    Confirm available footprint, tank dimensions and installation orientation.

  4. Connections and equipment

    Nominate inlet, outlet, vent, overflow, baffles and any pump/control interfaces.

  5. Structural design

    Provide burial depth, groundwater, cover loading, foundation and anchoring requirements.

  6. Access and handover

    Confirm manways and maintenance access; request approved drawings and installation/operation manuals.

Suggested specification wording

Complete the bracketed project details and confirm the selected model with Protector.

Supply a Protector HydroVault FRP storage tank, model [MODEL], providing [USABLE VOLUME] kL usable capacity for [FLUID / DUTY]. Configure inlet, outlet, overflow, vents, manways and internal arrangements as shown on the approved drawings. Confirm material compatibility, operating levels, structural loading, foundation and anchoring for the nominated site conditions. Install and commission in accordance with current manufacturer instructions.

Final dimensions, capacities and installation details are established in the approved project drawings and current manufacturer documentation.

Request a project-specific specification

Our Projects

Bruce Street Marleston

Bruce Street Marleston

Learn More
Caymus

Caymus

Learn More
Cleanaway Erskin Park

Cleanaway Erskin Park

Learn More
Gangarri Solar Project QLD

Gangarri Solar Project QLD

Learn More
GPT Mape1

GPT Mape1

Learn More
HYDROPROTECTOR - 7ELEVEN - DUNSBOROUGH

HYDROPROTECTOR - 7ELEVEN - DUNSBOROUGH

Learn More
HYDROPROTECTOR - ROYAL PRINCE ALFRED HOSPITAL

HYDROPROTECTOR - ROYAL PRINCE ALFRED HOSPITAL

Learn More
MAPT - Melbourne Arts Centre

MAPT - Melbourne Arts Centre

Learn More
PERRY’S FUEL - RENMARK

PERRY’S FUEL - RENMARK

Learn More
Puma 1

Puma 1

Learn More
Puma Energy

Puma Energy

Learn More
Rockhampton Airport

Rockhampton Airport

Learn More

Technical data

Product Specification

Model selection reference. Confirm current dimensions, capacities and connection details against the approved project drawing.

Model Length(A)1200 mm Dia (B)1500 mm Dia (B)1850 mm Dia (B)2200 mm Dia (B)2500 mm Dia (B)3000 mm Dia (B)3500 mm Dia (B)
Ltrs | KgLtrs | KgLtrs | KgLtrs | KgLtrs | KgLtrs | KgLtrs | Kg
40004000 | 2506400 | 3309700 | 50013800 | 60017800 | 75026000 | 100030000 | 1200
50005000 | 2908000 | 40012100 | 59017500 | 70022000 | 90032000 | 120040000 | 1550
60006000 | 3309600 | 47014600 | 70020500 | 80027000 | 105039000 | 140050000 | 1820
70007000 | 34011100 | 52017000 | 80024500 | 90031000 | 120044500 | 160058000 | 2050
80008000 | 39012750 | 56019500 | 100027500 | 100036000 | 140051000 | 195065000 | 2290
90009000 | 43014300 | 64022000 | 110031000 | 110039700 | 150058000 | 210075000 | 2500
1000010500 | 47015900 | 73024200 | 125034000 | 120044500 | 170064000 | 235083000 | 2730
1200012200 | 55019100 | 83029400 | 138041000 | 140054000 | 190078000 | 2700105000 | 3300
1400014000 | 65022500 | 94034000 | 160047000 | 160062000 | 220090000 | 3000120000 | 3900
1600016200 | 73026000 | 100039000 | 180055000 | 180071000 | 2500102000 | 3600140000 | 4350
1800018000 | 83028500 | 123044000 | 200062000 | 210080000 | 2700115000 | 3900160000 | 5000

Downloads & technical support

Everything you need
to move forward.

Access product documents or ask our team for the current package for your project.

Product documents

HydroVault downloads

Access the existing product document request page.

Open document page Project-specific package

Drawings & specification

Request the current model drawing, sizing guidance and specification for your site.

Request technical package Project support

Engineering & modelling

Coordinate the treatment train, hydraulic requirements and product layout.

Explore engineering In practice

HydroVault projects

See applications and installations from the project archive.

Explore projects Project film

Melbourne Arts Centre

Watch the project video from the original resource collection.

Watch on YouTube

Let’s work together

The right solution starts with a conversation.

Tell us about your site, your objectives and where you need support.

Talk about your project ↗1300 585 787
