Home/Products/BioProtector

Filtration & nutrients

BioProtector

Engineered filtration. Natural thinking.

Physical and biological stormwater filtration, configured to fit the landscape and treatment needs of the site.

How to specify Discuss your project

Product selection · Project drawings · Technical support

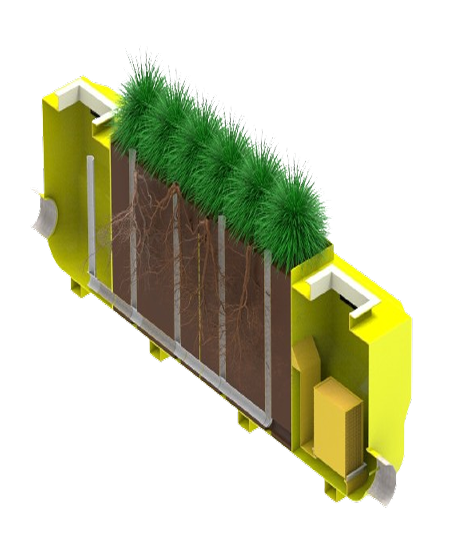

PROTECTOR / BIOPROTECTORBioProtector product illustration
Engineered for your application.01 / PRODUCT

The system, explained

Engineered filtration. Natural thinking.

BioProtector combines physical filtration with biological treatment. Media selection, hydraulic loading and the landscape arrangement are coordinated to support the project’s water quality objectives and ongoing maintenance.

Explore our engineering support

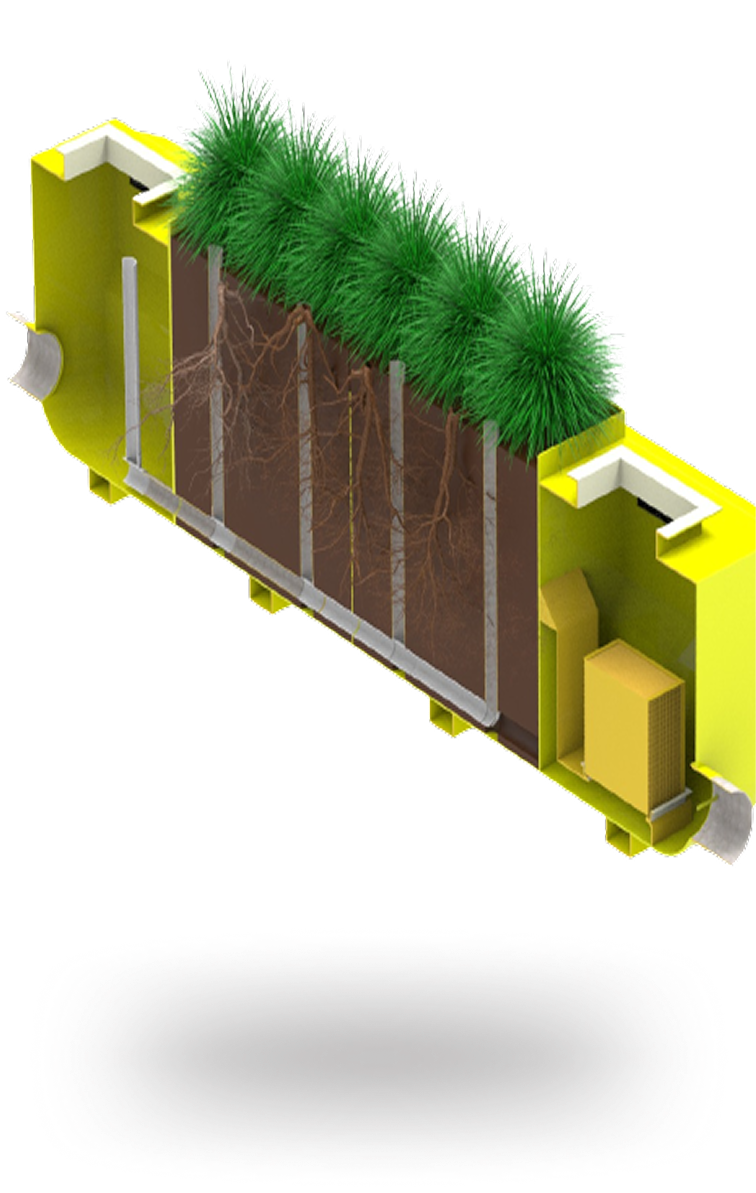

How it works

Purpose in every detail.

01

Receive runoff

Coordinate upstream pretreatment and the inlet arrangement.

02

Filter through media

Physical and biological processes treat water as it passes through the specified media.

03

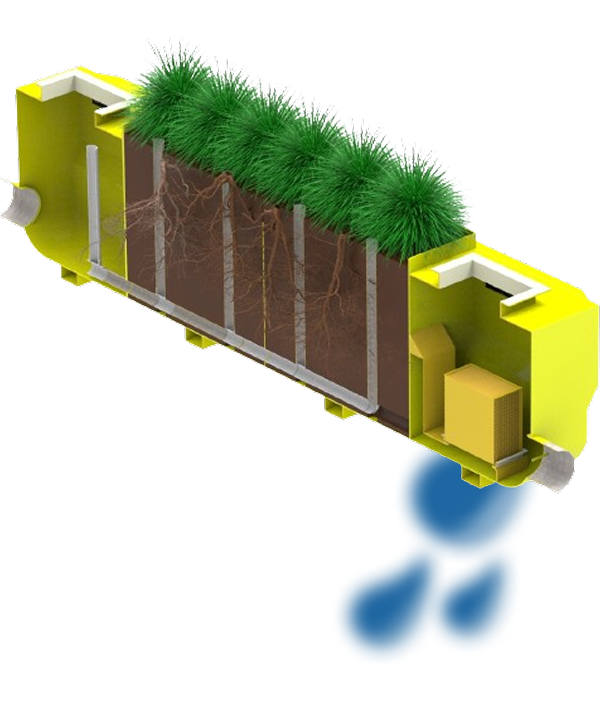

Drain and maintain

The underdrain and overflow arrangement manage treated and excess flows.

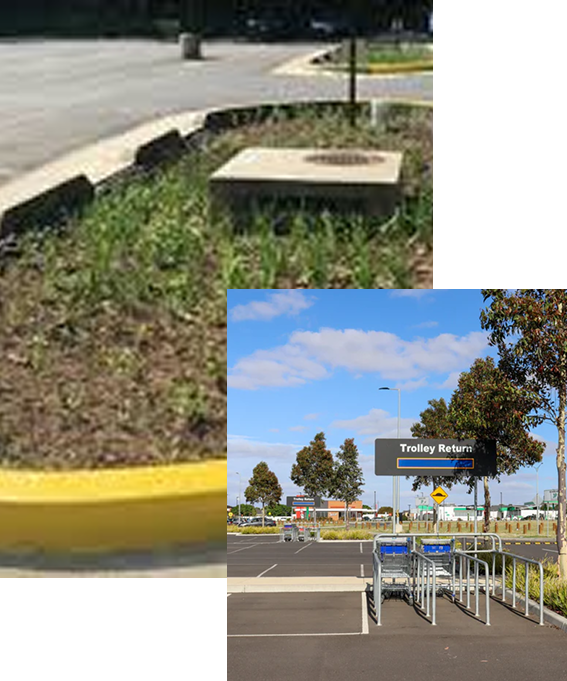

Where it fits

Designed for real sites.

Urban landscapes Commercial developments Streetscapes Building retrofits

For designers & specifiers

How to specify
BioProtector.

Start with the project requirements.
We’ll help you confirm the right configuration.

  1. Water quality goals

    Define target pollutants and the project’s approved treatment objectives.

  2. Catchment and loading

    Provide catchment area, design flow and required treatment area.

  3. Media and planting

    Confirm the approved media profile, depths and planting arrangement.

  4. Levels and overflow

    Coordinate inlet, underdrain, overflow and available hydraulic head.

  5. Site integration

    Confirm the landscape footprint, adjacent structures and pretreatment.

  6. Maintenance plan

    Define establishment, inspection and media/vegetation maintenance requirements.

Suggested specification wording

Complete the bracketed project details and confirm the selected model with Protector.

Supply a Protector BioProtector biofiltration system configured for catchment [CATCHMENT] and design flow [FLOW] L/s. Provide treatment area [AREA] m², media profile [MEDIA / DEPTHS] and planting as confirmed in the approved design. Coordinate pretreatment, underdrain and overflow levels with the civil and landscape drawings. Provide establishment and ongoing maintenance requirements.

Final dimensions, capacities and installation details are established in the approved project drawings and current manufacturer documentation.

Request a project-specific specification

Downloads & technical support

Everything you need
to move forward.

Access product documents or ask our team for the current package for your project.

Product documents

BioProtector downloads

Access the existing product document request page.

Open document page Project-specific package

Drawings & specification

Request the current model drawing, sizing guidance and specification for your site.

Request technical package Project support

Engineering & modelling

Coordinate the treatment train, hydraulic requirements and product layout.

Explore engineering Project film

Melbourne Arts Centre

Watch the project video from the original resource collection.

Watch on YouTube

Let’s work together

The right solution starts with a conversation.

Tell us about your site, your objectives and where you need support.

Talk about your project ↗1300 585 787
