Intercept runoff
Flow enters the pit and is directed into the insert.
Primary treatment

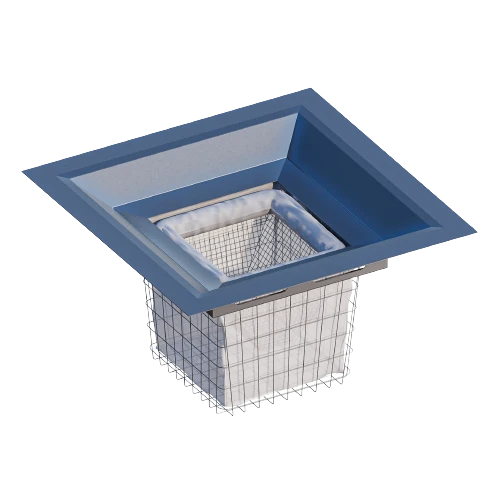

Trap-It
Small footprint. First-line protection.
A removable pit insert that captures litter and sediment at the point stormwater enters the drainage network.
Product selection · Project drawings · Technical support
The system, explained
Small footprint. First-line protection.
Trap-It fits within new or existing stormwater pits. Its stainless steel frame, adjustable mounts and staged filtration provide a practical primary treatment option upstream of finer filtration systems.
Explore our engineering supportHow it works
Purpose in every detail.
Filter in stages
Screens and the filtration bag capture debris and finer material.
Lift out and maintain
The removable insert allows inspection and cleaning; the bypass path remains part of the pit design.
Where it fits
Designed for real sites.
Existing drainage pits New developments Car parks Upstream filter protection
For designers & specifiers
How to specify
Trap-It.
Start with the project requirements.
We’ll help you confirm the right configuration.
Pit dimensions
Measure the clear opening, internal pit dimensions, depth and grate arrangement.
Catchment flow
State the contributing catchment and design flow to each pit.
Insert selection
Confirm the Trap-It model, screen and filter bag configuration.
Mounting detail
Coordinate the support frame and adjustable mounting arms with the pit.
Bypass path
Maintain the designed high-flow bypass and required drainage clearances.
Service access
Allow safe removal, lifting and cleaning and nominate the maintenance plan.
Suggested specification wording
Complete the bracketed project details and confirm the selected model with Protector.
Supply Protector Trap-It removable gross pollutant trap pit inserts, model [MODEL], to pits [PIT REFERENCES]. Confirm fit to the measured clear pit openings of [DIMENSIONS] mm and the required design flow of [FLOW] L/s per pit. Include stainless steel frames, adjustable mounts and the selected screen and filter bag configuration. Maintain the designed bypass path and provide safe access for removal and cleaning.
Final dimensions, capacities and installation details are established in the approved project drawings and current manufacturer documentation.
Request a project-specific specification
Technical data
Trap it Specification
Model selection reference. Confirm current dimensions, capacities and connection details against the approved project drawing.
| Model ID | Model Description | Pit Length (mm) | PIT Width (mm) | Basket Depth (mm) |
|---|---|---|---|---|
| TRPT-350-4545 | TrapIT for 450 x 450 pit openingwith 350S basket | 450 | 450 | 350 |
| TRPT-350-66 | 2 TrapIT for 600 x 600 pit openingwith 350S basket | 600 | 600 | 350 |
| TRPT-350-69 | TrapIT for 600 x 900 pit openingwith 350S baske | 600 | 900 | 350 |
| TRPT-350.T * | TrapIT for up to 1050 x 1050 pitopening with 350S baske | Adjustable up to 1050 | Adjustable up to 1050 | 350 |
| TRPT-450-4545 | TrapIT for 450 x 450 pit openingwith 450S basket | 450 | 450 | 450 |
| TRPT-450-66 | TrapIT for 600 x 600 pit openingwith 450S basket | 600 | 600 | 450 |
| TRPT-450-69 | TrapIT for 600 x 900 pit openingwith 450S basket | 600 | 600 | 450 |
| TRPT-450-99 | TrapIT for 900 x 900 pit openingwith 450S baske | 900 | 900 | 450 |
| TRPT-450.T * | TrapIT for up to 1050 x 1050 pitopening with 450S basket | Adjustable up to 1050 | Adjustable up to 1050 | 450 |
