Overview of EnviroProtector

The EnviroProtector is a specialist stormwater filter for heavily polluted traffic areas, designed for installation within new or existing chambers. The Fiberglass housing is safe and easy to fit on site. The EnviroProtector operates in an up-flow process resulting in minimal head drop between the inlet and the outlet. The stormwater is treated within the unit by the following processes: sedimentation, filtration, adsorption and precipitation. It is suitable for Heavy Metal, TSS and Nutrient reduction.

The Heart of the EnviroProtector is the EnviroFilter, the filter is a mix of technologies, chemical filtration process and filter media. These include Oil Coalescing, 30 Micron Filtration, zeolite adsorption materialsperlite phosphorus removal and activated carbon. This system is designed as an underground stormwater treatment system constructed from our chop hoop filament wound FRP materials, designed for long life, strength and corrosion resistance. The Enviro Filter is a mix of technologies that provide removal techniques such as sedimentation, filtration and adsorption of nutrients, chemicals, hydrocarbons and oils. The system is made up of a range of filtration media using zeolite, perlite, and activated granular carbon in a range of percentages to remove what is required. It is a highly efficient and effective tertiary system that removes a high percentage of contaminants and due to its wide range of configurations, filter arrangements and size variations the system is suitable for almost all site demands.

Filter Types

It is available with various filter types, depending on the usage of the connected area. The Roof type is used for roof areas that do not have a significant proportion of undercoated metals; the Metal type is employed for metal roof areas, and the Traffic type is used for slightly polluted traffic areas. The Heavy Traffic type is employed for heavily polluted traffic areas. The maximum areas that may be drained depending on the nature of the surfaces.

Contaminant Zeolite Perlite Granular activated Carbon ENVIROFILTER Media

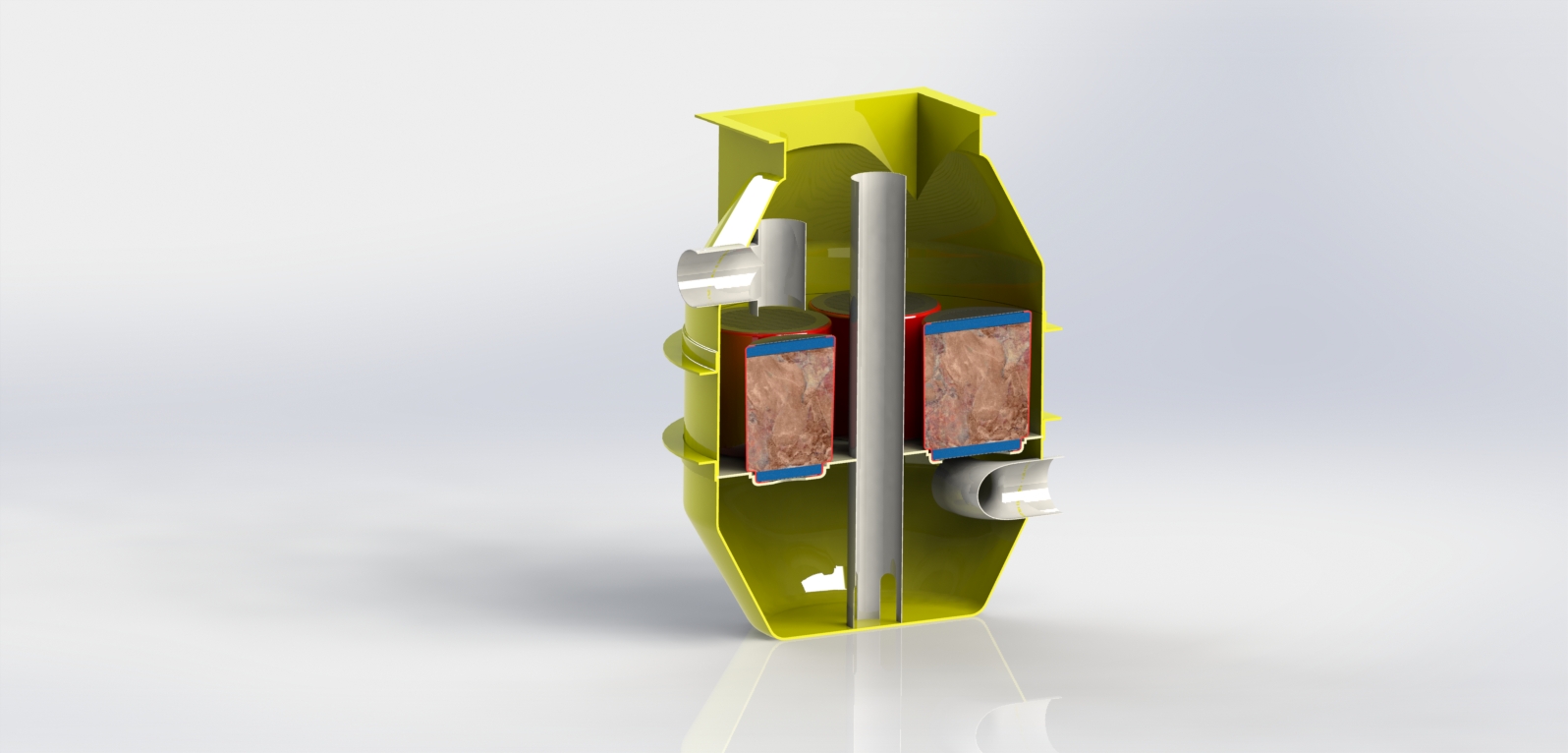

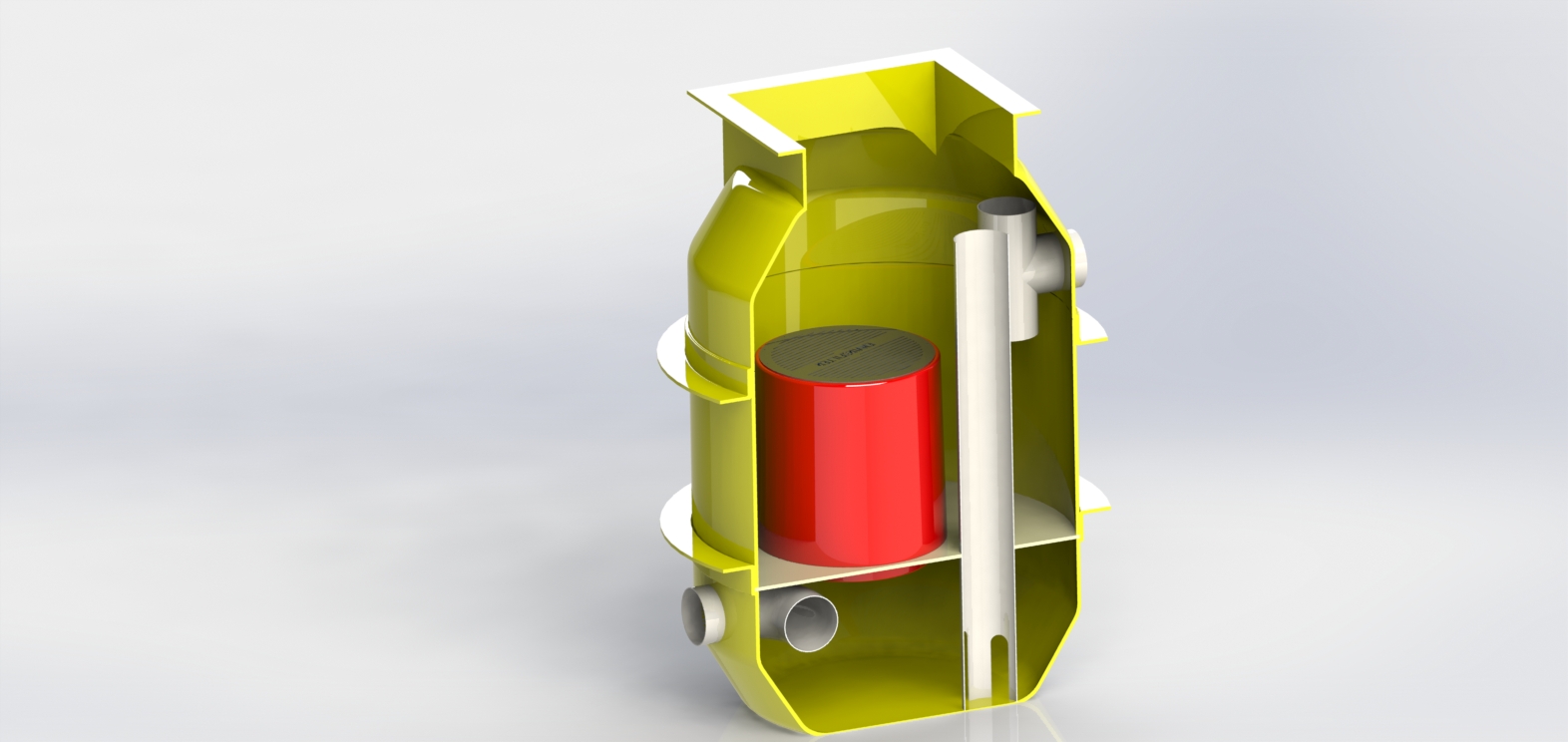

  1. The rainwater from the connected area is fed into the basal section of the filter housing. The angled inlet generates a radial flow pattern.
  2. The hydrodynamic separator converts turbulent waters into a radial laminar flow pattern, generating particle sedimentation, particularly of the sand fraction. This takes place over an inlet to the lower section of the filter shaft. The sediment is retained in a silt trap chamber below the separator. The silt trap can be withdrawn for cleaning, and has an integral cleaning port to the side to ease dirt removal.
  3. In the central section of the filter housing is the actual filter and filter Roof. The filter element filters out the fine materials in an up-flow process and dissolved materials are precipitated and adsorbed. The filter is backwashed from above. When exhausted the filter is easily exchanged through the access manway constructed in the roof of the body and the filter element is easily pulled up and removed from the shaft housing.
  4. The cleaned water then passes through the discharge outlet. The system utilizes an oil trap system to ensure a clean water to prevent the movement of any oil that isn’t dissolved and retained in the filter elements and is then discharged into water storage, waterway systems or free surface water.

Features and Applications of EnviroProtector

The Envirofilter contains a wide range of Filter media, specifically chosen at the ratios, particle size and type to ensure the most efficient removal of pollutants. The exact engineering of the media has been painstakingly chosen by our team at PROTECTOR to ensure the best results for our environment at the most cost-effective pricing possible.

Our filters can be employed in heavy and light traffic scenarios and provide great filtration rates for all applications to satisfy Councils, Consultants, Builders and plumbers alike. Because of its up-flow process it can efficiently work in flat sites requiring only 250 mm fall across the device ensuring that it is suitable for implementation into any stormwater plan with minimal incursion on the site or its plans.

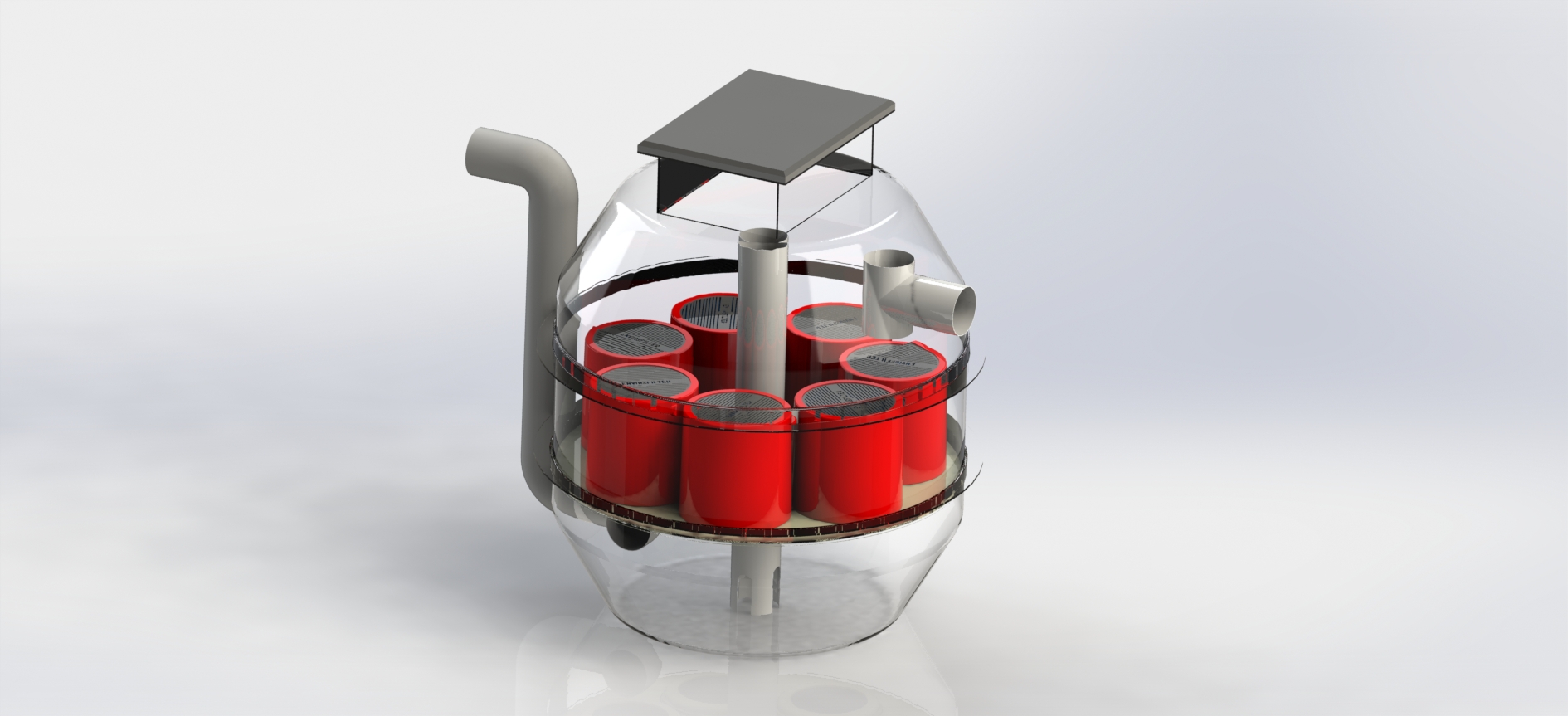

Furthermore Multiple units can be manifolded together to treat higher flows or can be designed in larger tanks with high flow rates possible. Each EnviroFilter will provide 8 L/s of treatment flow rate, installed in offline configuration.

  • Stormwater treatment filter
  • Underground installation, no loss of site surface area
  • Designed for TSS,TP and TN removal
  • Light, quick and easy to install
  • 150-300mm head to drive flow
  • Filter modules easy to replace
  • 8L/s Treatment Flow rate per Filter

Filter Element

Material: Filter Substrate: Traffic

Weight 25 kg


Material: Fiberglass

Telescopic Extension Tube

Material: Polyethylene

Weight: 5 kg

Total weight: 37 kg (without Telescopic Extension)


    • Residential Subdivisions
    • Car parks
    • Shopping Centres
    • Commercial and Industrial developments
    • Tunnels, Highways & Transport Corridors
    • Recycling Yards
    • Main Stormwater drainage systems
    • Heavy Vehicle Maintenance
    • Airports Tarmacs
    • Transport (Truck and Bus) Depots
    • Loading Bays
    • Retrofitting to existing Stormwater drainage systems
    • Stormwater harvesting projects
    • Any other applications where the target pollutants are primarily gross
    • pollutants and oils and sediment

    The Hydroceptor’s range of applications, Modular design and low head requirements makes it a Filter that meets nearly any application.


The EnviroProtector range has a series of models to suit the needs of the system it is in place in. With each filter to have a flow rate of 8 L/s, this allows for a continuous increase in size of the tank, amount of filters and hence total flowrate to suit all needs. The flowrate, tank size and depth as well as the suitable connection size is shown in the table below.

Model Treatment Flow LPS Housing Dia (mm) Housing Depth Connection Size
See ProductEnviro Protector Model Range
8 1000 1500 100
See ProductEnviro Protector Model Range
16 1200 1500 150
See ProductEnviro Protector Model Range
24 1500 2000 225
See ProductEnviro Protector Model Range
32 1500 2000 225
See ProductEnviro Protector Model Range
40 1500 2000 225
See ProductEnviro Protector Model Range
48 1850 2000 225
See ProductEnviro Protector Model Range
56 1850 2000 225
See ProductEnviro Protector Model Range
64 1850 2000 225
See ProductEnviro Protector Model Range
72 2200 2200 225
See ProductEnviro Protector Model Range
80 2200 2200 300
See ProductEnviro Protector Model Range
88 2200 2200 300
See ProductEnviro Protector Model Range
96 2200 2200 300
See ProductEnviro Protector Model Range
104 2200 2200 300
See ProductEnviro Protector Model Range
112 2500 2200 300
See ProductEnviro Protector Model Range
120 2500 2200 300
See ProductEnviro Protector Model Range
128 2500 2200 300
See ProductEnviro Protector Model Range
136 2500 2200 375
See ProductEnviro Protector Model Range
144 3000 2200 375
See ProductEnviro Protector Model Range
152 3000 2200 375
See ProductEnviro Protector Model Range
160 3000 2200 375
See ProductEnviro Protector Model Range
168 3000 2200 375
See ProductEnviro Protector Model Range
176 3000 2200 375
See ProductEnviro Protector Model Range
184 3000 2200 375

Installation of EnviroProtector

The EnviroProtector is designed and built as one homogeneous unit to allow easy handling, transport and most importantly, installation: Ease of onsite installation and access, no heavy cranes and without the assembly of heavy concrete sections in the ground results in considerable cost savings: EnviroProtector cuts down the labour and saves time and money!

ECP Instalation

A complete installation hand book is supplied to ensure the installation goes smoothly and to plan. The guide provides advice for lifting, OHS measures, handling techniques and other important requirements. Installation is typically:

  1. Excavate hole
  2. Place station in hole
  3. Fill well with water about 20% of total volume
  4. Back fill to locking ring
  5. Pour ballast
  6. Install all connections as per manual*
  7. Back fill and pour top slab and install access cover

*All installation requirements are as per installation data manual.


All of the Protector range has been individually engineered to handle the toughest environmental situations and proven in the toughest environments such as high water tables and volcanic soils. Problems in these areas have been solved with the installation of the EcoProtector.

The Packaged EnviroProtectors are engineered to the following Standards:BS4994 – 1987, AS/NZS 1546.1:1998. Hydraulic and civil engineering can also be provided to your requirements.

Fibreglass Reinforced Polymers are strengthened materials that show higher resistance to the corrosion which makes them ideal to be implemented for the tanks. They can be exposed to the water for years without being corrupted. Light weight, being resistant to high temperature and easy on-site installation are some of the desirable features that FRP indicates. Furthermore, FRP plates have higher mechanical strength which enables them to carry higher loads compared to plastics.


Even though the EnviroProtector is relatively lightweight, pound for pound they are stronger than alternative structures. The EnviroProtector has no joins leaving a smooth, clean internal surface that resists scum and sludge build up and allows no leakage to the external environment. The lightweight configuration of the EnviroProtector simplifies handling and reduces costs in transport, labour and handling down time.

  • The Packaged EnviroProtectors are engineered to the following Standards:BS4994 – 1987, AS/NZS 1546.1:1998.
  • ASME RTP-1 is used to formulate the Design of the shell under external soil/groundwater loading is based on design for external collapse.
  • AS2634 – is used to formulate the design & manufacture and installation of the Penetrations to the stations.
  • AS1546 is used to formulate the design load of soil/groundwater and use for the testing methods applied.
  • AS1170 is used to formulate the design loads from active loads that the stations are subject to, including the required roof slab design. This standard is also used to formulae the ballast requirements for anti-floatation.

Standard Drawings

File Name PDF Files

For any systems with more than 10 filters, please contact any of our engineers at sales@protector.com.au for more details and site specific drawings
