Create a vortex
The inlet directs flow around the chamber to separate pollutants.
Primary treatment
Put pollution in its place.
A gross pollutant trap that combines vortex separation and indirect screening to capture litter, debris and sediment.
Product selection · Project drawings · Technical support

The system, explained

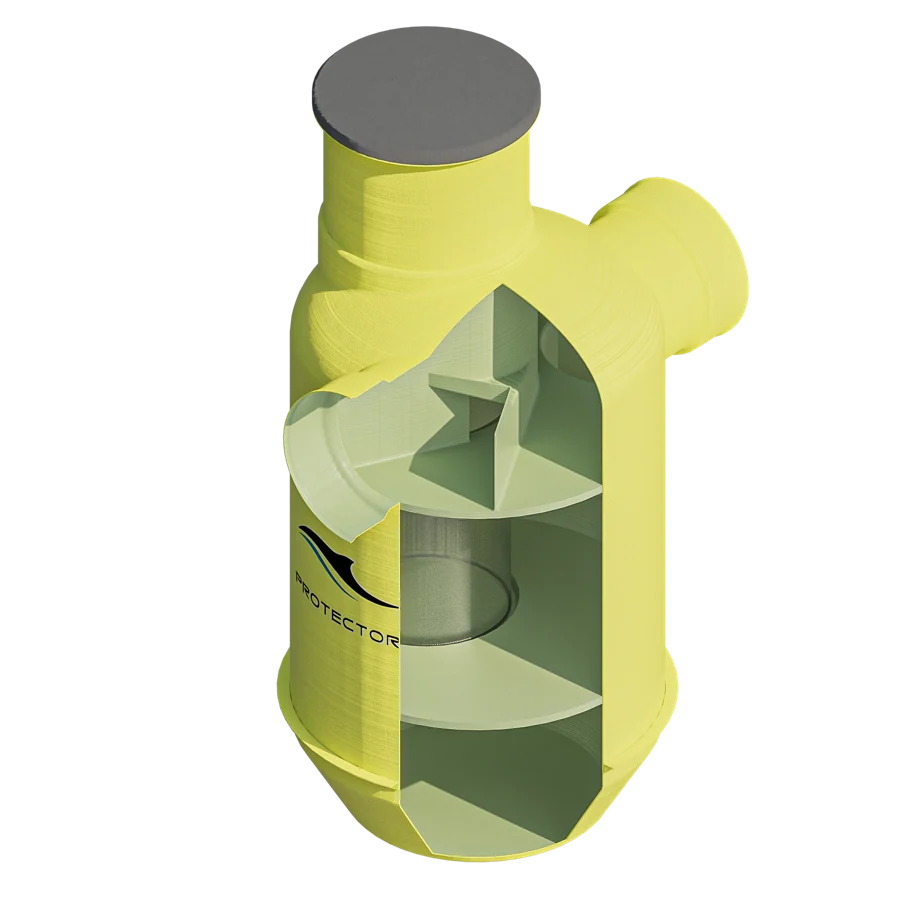

Tornado GPT directs stormwater into a vortex, separating gross pollutants and sediment into a collection chamber. Indirect screening and an internal hydrocarbon baffle support pollutant capture, with an internal weir managing flows above the treatment rate.
Explore our engineering supportHow it works
The inlet directs flow around the chamber to separate pollutants.
Indirect screening captures gross pollutants, with settled material retained for maintenance.
The bypass weir conveys excess flow in accordance with the selected model’s hydraulic design.
Where it fits
Drag to rotate the product.
For designers & specifiers
Start with the project requirements.
We’ll help you confirm the right configuration.
Define the pollutants to capture and the approved water quality objectives.
Provide treatment and peak bypass flows, pipe sizes and available head.
Confirm the model, screening arrangement and pollutant storage capacity.
Show inlet and outlet orientation, invert levels and finished surface level.
Confirm cover loading, groundwater and the excavation and backfill design.
Provide access for inspection and pollutant removal, with current model drawings and manuals.
Complete the bracketed project details and confirm the selected model with Protector.
Final dimensions, capacities and installation details are established in the approved project drawings and current manufacturer documentation.
Request a project-specific specificationTechnical data
Model selection reference. Confirm current dimensions, capacities and connection details against the approved project drawing.
| Model ID | Treatment flow (L/s) | Internal Diameter (MM) | Depth Below Invert (MM) | Max Pipe Size (MM) | Sump Capacity (M3) | Floatables Volume (MM) | Bypass Flow Rate (L/S) |
|---|---|---|---|---|---|---|---|
| TGPT.65.6010 | 65 | 1200 | 1600 | 375 | 0.68 | 0.17 | 140 |
| TGPT.110.7512 | 110 | 1500 | 1920 | 525 | 1.27 | 0.32 | 300 |
| TGPT.200.1015 | 200 | 1850 | 2400 | 600 | 2.42 | 0.65 | 440 |
| TGPT.320.1218 | 320 | 2200 | 2880 | 675 | 4.11 | 1.12 | 600 |
| TGPT.400.1518 | 400 | 2500 | 2880 | 750 | 5.30 | 1.59 | 760 |
| TGPT.720.1824 | 720 | 3000 | 3840 | 825 | 10.18 | 3.05 | 900 |
| TGPT.860.2124 | 860 | 3500 | 3840 | 900 | 13.86 | 4.16 | 1250 |
| TGPT.1350.2430 | 1350 | 4000 | 4800 | 1050 | 22.62 | 6.79 | 1700 |
Downloads & technical support
Access product documents or ask our team for the current package for your project.
Access the existing product document request page.
Open document page Project-specific packageRequest the current model drawing, sizing guidance and specification for your site.
Request technical package Project supportCoordinate the treatment train, hydraulic requirements and product layout.
Explore engineering In practiceSee applications and installations from the project archive.
Explore projects Project filmWatch the project video from the original resource collection.
Watch on YouTubeLet’s work together
Tell us about your site, your objectives and where you need support.
